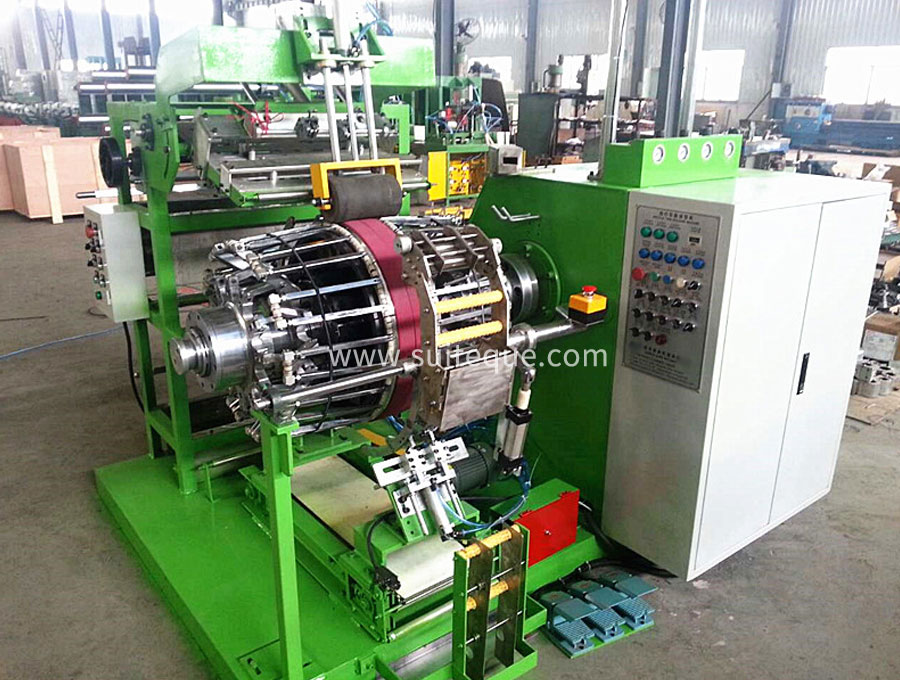

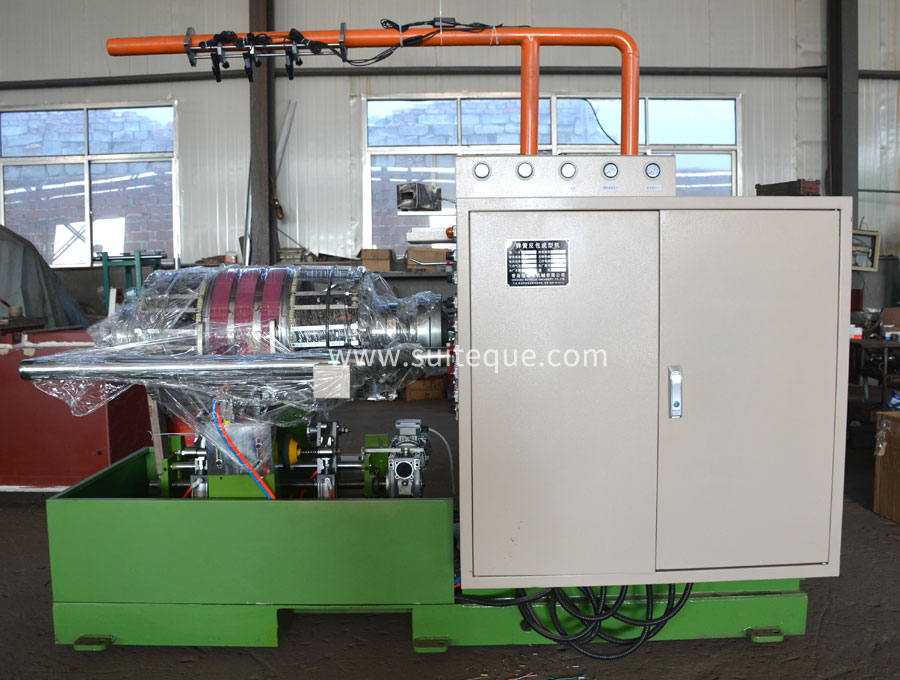

STB automatic spring turn-up tire building machine

  • 【Model】:
  • 【Application】:
  • 【Characteristics】:

Applicant
This building machine is commonly used for tire building equipment in domestic & overseas at present, mainly used for produce motorcycle apply, bead applying & cord turn-up, high degree of automation, good quality green tire building, easy and simple operation, it is advanced tire building machine equipment in China.

Specification of tire

Motorcycle and bike tire

Suitable cord fabric

8”-28”

Max. Diameter of cord fabric roll

400mm

Max. Diameter of lining cloth roll

300mm

Revolving speed of building drum

35-120r/min

Main drive motor power

2.2kw

Roller motor power

0.75kw

Ply servicer motor

1/2 HPx4Px1/20/each ply

Pressure of compressed air

5-7kg/cm²

Overall size

2300x2200x2050mm

Building speed

2PLY building 500pcs/8hrs
4PLY building 400pcs/8hrs
